產品特性 Product features

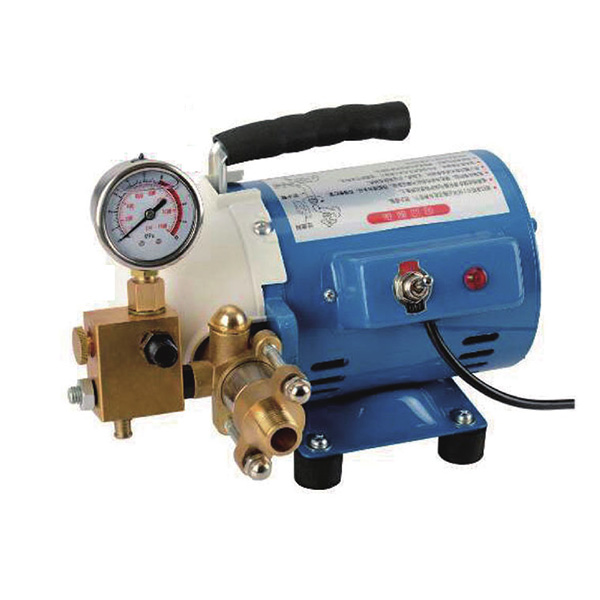

Dsy-B型電動試壓泵具有結構緊湊、合理、操作簡單省 力,不易損壞,整機重量輕,維修方便、防銹,從而大大的 提高了工作效率,流量比普通DSY型大。
Dsy-B electric hydraulic test pumps are characterized by compact, reasonable structure, simple operation, durability, light weight, convenient repairs and rust prevention. All these remarkably boost the working efficiency and the flow is large than that of ordinary DSY pumps.
技術參數 Technical parameters
型號 Model | 壓力 Pressure (Mpa) | 電壓 Voltage | 功率 Power (KW) | 流量 Flov Volume | 毛重 G.W. (Kg) | 尺寸 Meas (mm) |
DSY- 60B | 0-6.0MPa | 110/220V | 250W | 220L7H | 14 | 400*300*290 |
DSY- 100B | 0-10MPa | 110/220V | 320W | 220L7H | 14 | 400*300*290 |
